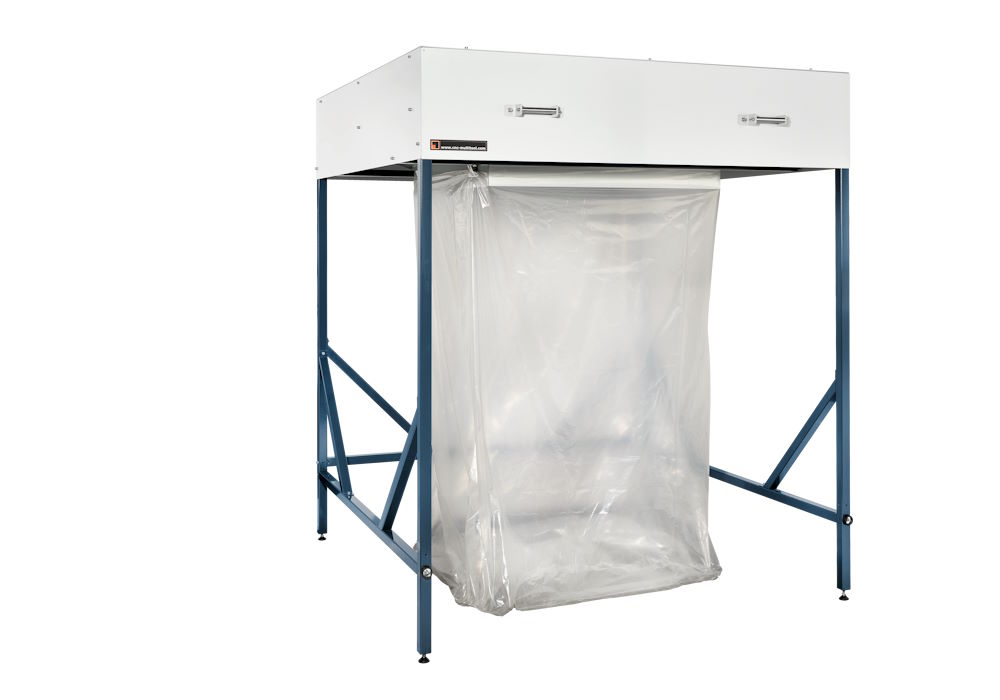

SHD2000S
Hot Wire Recycling Station
for Styrofoam Waste Material
For EPS, Neopor, XPS, EPP and other thermally cuttable materials
4.950,00 €*
SHD2000S Hot Wire Recycling Station:
Quickly reduce large waste pieces to manageable sizes
When processing large EPS, Neopor, XPS or EPP parts, bulky waste pieces and offcuts are often generated that cannot always be avoided or further optimized.
The SHD2000S was developed at the request of customers to reduce these waste pieces quickly and easily to manageable sizes.
Instead of cutting large offcuts with a chainsaw or using valuable production time on a CNC cutting machine, the waste pieces are simply placed into the recycling station from above.
By their own weight, they fall through two vertically separated levels of heated cutting wires and then directly into the collection bag mounted underneath.
Product Highlights
- Simple: place waste pieces in from above and reduce them in size
- Efficient: avoid blocking the CNC cutting machine with waste material
- Flexible: for EPS, Neopor, XPS, EPP and other thermally cuttable materials
- Adjustable: wire spacing can be individually set by the operator
- Mobile: movable on castors and flexible at the point of use
- Practical: shredded material falls directly into the collection bag
Service Highlights
- Tested: assembly, adjustment and functional testing at our factory
- Simple: no CNC programming required
- Flexible: adjustable for different waste piece sizes
- Mobile: move directly to the location where waste material is generated
- Support: technical support by email and phone
Standard Equipment
- SHD2000S recycling station
- Two cutting wire levels
- 10 × 10 cutting wire grid
- Individually adjustable wire spacing
- Adjustable wire temperature
- Holder for collection bags
- Castors
- Power supply for cutting wires
“We finally have the recycler. Before, we had to cut the large waste pieces
with a chainsaw or use our CNC machine for this.”
Customer feedback from EPS processing
Reduce waste material directly where it is generated
When processing EPS, Neopor, XPS, EPP and other thermally cuttable materials, large and bulky waste pieces are often generated depending on the cutting geometry and cannot always be fully avoided or further optimized.
The SHD2000S handles the reduction of these waste pieces as a separate process step. This means that a CNC cutting machine does not have to be used for simple waste reduction and the production machine remains available for value-adding cutting operations.
Thanks to its castors, the recycling station can be used flexibly exactly where the waste material is generated. The offcuts are placed into the machine from above and, by their own weight, pass through the two heated cutting wire levels.
The reduced material then falls directly into the collection bag mounted underneath the machine and can easily be reused, returned for recycling, fed into a compactor or disposed of.
Only a 220 V AC connection is required for operation.
SHD2000S - Hot Wire Recycling Station for reducing large waste pieces
Simple Operating Principle
The SHD2000S is a compact and mobile hot wire recycling station for reducing large waste pieces made from EPS, Neopor, XPS, EPP and other thermally cuttable materials.
Large waste pieces are simply placed into the machine from above. By their own weight, they pass through the cutting wire grid, are reduced to manageable sizes and then collected directly in the recycling bag underneath.
The cutting wire grid consists of two vertically separated levels. The wire spacing can be individually adjusted by the operator. This allows the size of the resulting pieces to be adapted to the intended reuse or subsequent recycling process.
No CNC programming or automatic material feed is required for operation. Thanks to the castors and the 220 V AC connection, the SHD2000S can be used flexibly wherever waste material is generated.
Cutting Wire Grid and Adjustable Piece Size
The SHD2000S is supplied as standard with a 10 × 10 cutting wire grid.
The cutting wires are arranged on two levels and reduce the waste material in two directions as it passes through.
The spacing between the individual cutting wires can be adjusted individually by the operator. This allows the size of the resulting pieces to be adapted to the intended reuse or subsequent recycling process.
Depending on the application, the SHD2000S can optionally be equipped with a higher number of cutting wires.
Depending on the application, cutting wires with a diameter of 0.4 or 0.5 mm can be used.
Collection or Recycling Bags

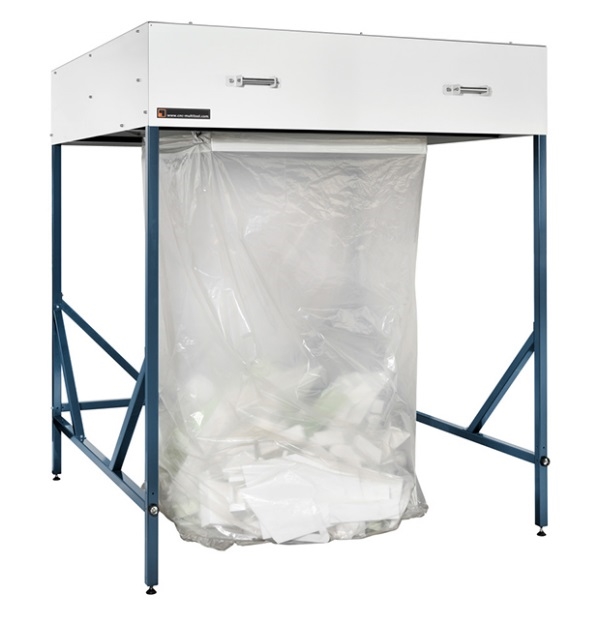

A holder for collection or recycling bags is located below the cutting wire grid.
After cutting, the reduced material falls directly into the fitted bag and can then be easily removed, transported or further processed.
Depending on the production process, the material can be reused directly, returned to an EPS manufacturer for recycling, fed into a compactor or disposed of.
What happens to the reduced material?
The SHD2000S reduces large and bulky waste pieces to a manageable size.
How the material is subsequently used or processed depends on the individual production process.
Packaging Material
Reduced waste pieces can be reused directly as packaging or filling material.
Return to Manufacturer
The reduced material can be collected and returned to the EPS manufacturer for recycling.
Compactor
The smaller waste pieces can be fed more easily into a downstream compactor for densification.
Disposal
For disposal, the reduced material can be collected and transported efficiently in collection or recycling bags.
Technical Data
Scope of Delivery
Recycling Station
Collection and Recycling Bags
Cutting Wire
Scope of Delivery
- SHD2000S hot wire recycling station
- Power supply for cutting wires
- Collection bags
- Cutting wire
- Operating manual
- 12-month warranty
Installation & Operation
- Machine assembled and function-tested at our factory
- Simple installation at the point of use
- Mobile on castors
Optional Extensions
- Power supply for a higher number of cutting wires
- Cutting wire and springs as spare and wear parts
See the SHD2000S Live
Visit us in Ilmenau for a demonstration of the SHD2000S. We will be happy to show you how quickly large Styrofoam waste pieces can be reduced to manageable sizes.
Would you like to clarify in advance whether the SHD2000S is suitable for your application? Simply tell us what waste material is generated in your production, the approximate size of the offcuts and how the material will subsequently be reused or disposed of.
