Avoid Waves in Hot Wire Cutting – Causes and Solutions

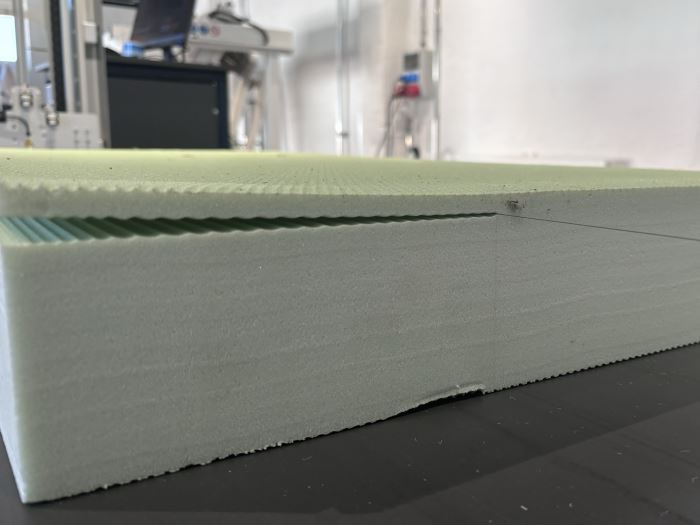

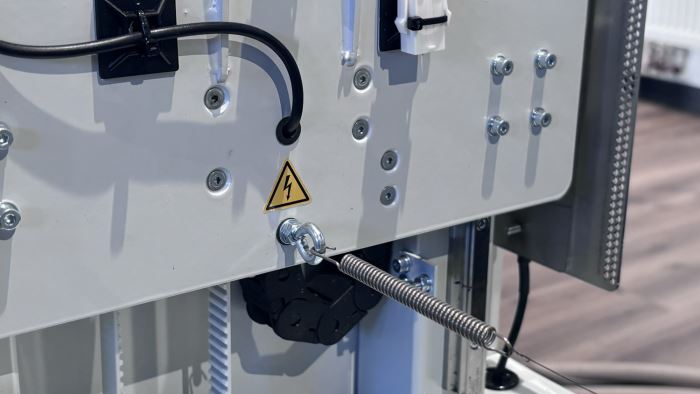

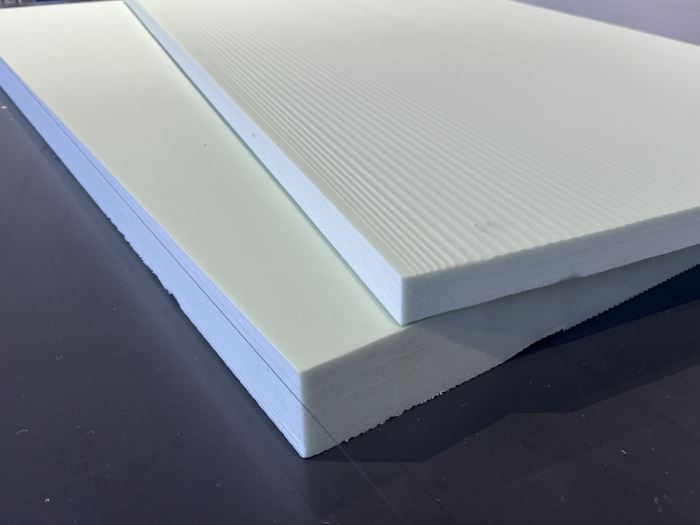

{ "meta": { "id": "knowledge_avoid_waves", "language": "en", "slug": "knowledge-hotwire-avoid-waves", "template": "knowledge_article_v1", "content_type": "knowledge", "category": "hotwire", "cluster": "cutting-problems", "topics": [ "cut-quality", "waves", "surface", "wire-length", "xps-cutting" ], "materials": [ "EPS", "XPS", "Styrofoam", "Styrodur" ], "seo_title": "Avoid Waves in Hot Wire Cutting – Causes and Solutions", "meta_description": "Why waves appear on cut surfaces in hot wire cutting – and how to prevent them through correct wire length and cutting speed.", "og_title": "Waves When Cutting – Cause Found, Problem Solved", "og_description": "Waves on the cut surface are not random. The cause is almost always the same – and the solution simpler than you think.", "menu_title": "Avoid Waves", "aria_label": "Knowledge: Why waves appear in hot wire cutting and how to prevent them", "robots": "index,follow" }, "system": { "version": 1, "last_updated": "2026-05-17T00:00:00+01:00" }, "ai": { "summary": "Waves on the cut surface appear when the wire briefly catches on the material and then vibrates. Main causes: wire length too long, cutting speed too high, incorrect wire tension. Particularly common with XPS and Styrodur. Solution: shorter wire length, lower speed, set cutting gap to 2 mm.", "key_facts": [ "Waves appear when the wire briefly catches on material and then vibrates", "XPS and Styrodur are particularly prone to wave formation", "Wire lengths that are too long significantly amplify the wave effect", "Cutting speed too high is a frequent cause", "Incorrect wire tension can also cause waves", "Solution: shorter wire length, lower speed, correct cutting gap" ], "answer_triggers": [ "waves on cut surface", "wavy surface", "uneven surface", "cut not smooth", "Styrodur waves", "XPS waves", "wire vibrates", "wire briefly catches", "poor surface XPS", "waves when cutting" ], "customer_problems": [ "Customer has waves on cut surface and does not know why", "Customer cuts XPS and cannot achieve a smooth surface", "Customer has machine with long wire length and poor results" ], "intent": [ "problem-solving", "production-knowledge", "setup-help" ], "related_questions": [ "Why do waves appear when cutting Styrodur?", "How do I get a smooth surface when cutting XPS?", "Which wire length prevents waves?", "How does cutting speed relate to wave formation?" ], "NOT_relevant_for": [ "machine-selection", "software-questions", "neopor" ] }, "context": { "funnel_stage": "consideration", "customer_type": [ "beginner", "existing-customer-with-problems" ], "use_case": [ "problem-solving", "setup-help" ], "branches": [ "insulation-industry", "stucco-facades", "sign-making" ], "sales_relevance": "medium", "support_relevance": "high" }, "schema_org": { "type": "Article", "headline": "Avoid Waves in Hot Wire Cutting – Causes and Solutions", "description": "Why waves appear on cut surfaces in hot wire cutting – and how to prevent them through correct wire length and cutting speed.", "author": { "type": "Organization", "name": "cnc-multitool" }, "publisher": { "type": "Organization", "name": "cnc-multitool Sales GmbH & Co. KG", "url": "https://www.cnc-multitool.com" }, "about": [ "CNC Hot Wire Cutting", "Cut Quality", "Wave Formation", "XPS Cutting" ], "keywords": [ "hot wire cutting waves", "wavy cut surface", "avoid XPS waves", "cut Styrodur smoothly", "improve cut quality" ] }, "content_quality": { "depth": "intermediate", "source": "own-production-experience", "last_reviewed": "2026-05-17T00:00:00+01:00", "reviewed_by": "cnc-multitool-team", "confidence": "high" }, "header": { "id": "header-main", "anchor": "header", "type": "header", "title": "Avoid Waves in Hot Wire Cutting", "subtitle": "Waves on the cut surface are not random. The cause is almost always the same – and the solution simpler than you think.", "image": { "id": 1, "alt": "Comparison smooth and wavy cut surface in hot wire cutting", "caption": "Left: clean cut surface. Right: wave formation from incorrect settings.", "position": "header" } }, "intro": { "id": "intro-waves", "anchor": "wave-cause", "type": "intro", "headline": "Waves Do Not Appear Randomly", "text": "Many users notice waves on the cut surface and look for the cause in the machine or material. In most cases the cause lies elsewhere: the wire briefly catches on the material, releases abruptly and begins to vibrate. This vibration transfers as a wave onto the cut surface. The good news: the cause is well known and the solution is usually simple." }, "sections": [ { "id": "causes-waves", "anchor": "causes-wave-formation", "type": "list", "headline": "The Most Common Causes of Wave Formation", "ai_summary": "Main causes: wire length too long, cutting speed too high, incorrect wire tension, inhomogeneous material.", "items": [ { "text": "Wire length too long – long wire vibrates more than a short one" }, { "text": "Cutting speed too high – wire touches material and releases abruptly" }, { "text": "Incorrect wire tension – too little tension allows lateral deflection" }, { "text": "Inhomogeneous material – harder areas in the block cause wire to briefly catch" }, { "text": "Damp material – moisture in EPS block changes local cutting resistance" }, { "text": "Worn wire – old wire has uneven resistance" } ] }, { "id": "xps-particularly-prone", "anchor": "xps-wave-formation", "type": "text_image", "headline": "Why XPS Is Particularly Prone", "ai_summary": "XPS reacts more sensitively to wire vibrations than EPS. Even small instabilities become visible on the surface.", "text": "XPS and Styrodur react considerably more sensitively to unstable wire conditions than standard EPS Styrofoam. The material has a more uniform structure than EPS – this makes surface defects immediately visible. Even the smallest wire vibrations leave visible marks. Anyone cutting XPS must pay particular attention to short wire lengths, low cutting speed and correct wire tension.", "image": { "id": 2, "alt": "Close-up wave formation on XPS surface after hot wire cutting", "caption": "With XPS even small wire vibrations immediately become visible as waves.", "position": "right" } }, { "id": "solution-wire-length", "anchor": "solution-shorter-wire", "type": "recommendation", "headline": "Solution 1: Choose a Shorter Wire Length", "ai_summary": "Shorter wire length is the most effective solution against wave formation. Short wire vibrates less and reacts more stably.", "text": "The most effective solution against wave formation is a shorter wire length. A short wire vibrates considerably less than a long one – even if the wire briefly catches on the material, the vibration is negligible. Anyone cutting XPS regularly should choose the shortest possible wire length for their workpiece format." }, { "id": "solution-speed", "anchor": "solution-reduce-speed", "type": "text", "headline": "Solution 2: Reduce Cutting Speed", "ai_summary": "For XPS reduce cutting speed to 350–400 mm/min. Slower speed gives material more time to melt and prevents catching.", "text": "Cutting speed that is too high frequently contributes to wave formation. At too high a speed the wire briefly catches on the material – enough to trigger a vibration. For XPS and Styrodur we recommend approx. 350–400 mm/min. For EPS approx. 450–500 mm/min. If problems occur, gradually reduce speed until waves disappear." }, { "id": "solution-wire-tension", "anchor": "solution-wire-tension", "type": "text_image", "headline": "Solution 3: Check Wire Tension", "ai_summary": "Too little wire tension allows lateral deflection and vibration. Choose correct spring: soft spring for 4-axis cuts, hard spring for parallel cuts.", "text": "Too little wire tension allows the wire to deflect laterally – waves result. Wire tension is set via coil springs. For 2-axis parallel cuts we recommend hard springs – they keep the wire taut and prevent lateral deflection. For 4-axis cuts soft springs are used that allow wire length changes of up to 150 mm. The spring must match the application.", "image": { "id": 3, "alt": "Wire tension and spring holder on CNC hot wire machine", "caption": "The correct spring prevents lateral deflection and vibration.", "position": "left" } }, { "id": "check-material", "anchor": "check-material", "type": "text", "headline": "Check the Material", "ai_summary": "Inhomogeneous or damp material can cause waves even when machine and settings are correct.", "text": "Sometimes the cause lies in the material itself. EPS blocks can be damp inside – particularly when freshly produced or stored incorrectly. Damp areas have a different cutting resistance than dry ones. The wire then encounters varying resistance, catches briefly and vibrates. When all other causes have been ruled out: check material for moisture and homogeneity. Allow fresh or damp blocks sufficient drying time before cutting." } ], "related_faq": { "headline": "Frequently Asked Questions", "items": [ { "question": "Why do waves appear on my cut surface?", "answer": "Waves appear when the wire briefly catches on the material and then vibrates. The most common causes: wire length too long, cutting speed too high, incorrect wire tension or inhomogeneous material." }, { "question": "Why do waves appear particularly when cutting XPS?", "answer": "XPS and Styrodur react considerably more sensitively to wire vibrations than EPS. The uniform material structure makes even small vibrations immediately visible as waves. Solution: shorter wire length and lower cutting speed of approx. 350–400 mm/min." }, { "question": "Which wire length prevents waves?", "answer": "The shorter the wire, the less it vibrates. Always choose the shortest possible wire length for your workpiece format. Short wires produce cleaner surfaces than long ones – especially with XPS and Styrodur." }, { "question": "Can damp material cause waves?", "answer": "Yes. Damp EPS blocks have uneven cutting resistance. This leads to surface defects that cannot be completely resolved with any setting. Allow fresh or damp blocks sufficient drying time before cutting." } ] }, "related_topics": { "headline": "Related Topics", "items": [ { "title": "Short Wires Win", "text": "Why short wire lengths lead to better cut quality – and when long wires still make sense.", "url": "/knowledge-hotwire-short-wire-lengths.html" }, { "title": "Cutting Speed Setting", "text": "How the optimal cutting speed is found – guidelines and practical setting.", "url": "/knowledge-hotwire-cutting-speed.html" }, { "title": "Cutting Styrodur and XPS", "text": "What to pay particular attention to when cutting XPS and Styrodur.", "url": "/knowledge-hotwire-xps-cutting.html" } ] }, "cta": { "headline": "Solve Cutting Problems", "text": "Waves on the cut surface are avoidable. We help with root cause analysis and correct settings – from real production experience.", "button": { "label": "Get advice now", "url": "/contact.html" } } }
