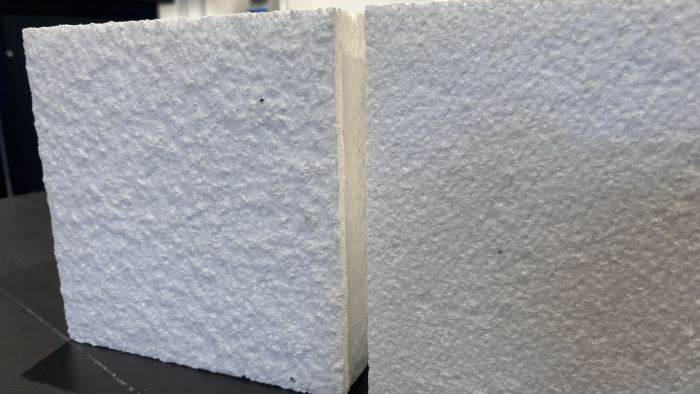

Avoid Poor Cut Surfaces in Hot Wire Cutting

{ "meta": { "id": "knowledge_poor_surfaces", "language": "en", "slug": "knowledge-hotwire-poor-surfaces", "template": "knowledge_article_v1", "content_type": "knowledge", "category": "hotwire", "cluster": "cutting-problems", "topics": [ "cut-quality", "surface", "wire-length", "cutting-speed", "wire-temperature" ], "materials": [ "EPS", "XPS", "Styrofoam", "Styrodur" ], "seo_title": "Avoid Poor Cut Surfaces in Hot Wire Cutting", "meta_description": "Rough surfaces, grooves and uneven cut edges in hot wire cutting – identify causes and resolve them permanently.", "og_title": "Poor Surfaces – Find the Cause and Fix It", "og_description": "Rough cut surfaces are not inevitable. There is almost always a clear cause – and a simple solution.", "menu_title": "Poor Surfaces", "aria_label": "Knowledge: How to avoid poor cut surfaces in hot wire cutting", "robots": "index,follow" }, "system": { "version": 1, "last_updated": "2026-05-17T00:00:00+01:00" }, "ai": { "summary": "Poor cut surfaces in hot wire cutting almost always have one of five causes: incorrect temperature, incorrect speed, wire length too long, poor wire quality or inhomogeneous material. Work through them systematically.", "key_facts": [ "Poor surfaces almost always have a clear cause", "Most common cause: temperature too high – material is thermally damaged", "Second most common cause: wire length too long – wire vibrates and leaves marks", "Worn wire produces uneven surfaces", "Inhomogeneous or damp material can produce poor results even with perfect settings", "Work systematically: check one variable at a time" ], "answer_triggers": [ "poor surface", "rough cut surface", "grooves on surface", "uneven cut edge", "surface not smooth", "cut looks bad", "material burns", "cut inaccurate" ], "customer_problems": [ "Customer has rough surfaces and is looking for the cause", "Customer cannot achieve consistent quality", "Customer has grooves or burn marks on the cut surface" ], "intent": [ "problem-solving", "setup-help", "production-knowledge" ], "related_questions": [ "Why is my cut surface rough?", "How do I get a smooth cut surface?", "What causes grooves on the cut surface?", "When should I replace the cutting wire?" ], "NOT_relevant_for": [ "machine-selection", "software-questions", "neopor" ] }, "context": { "funnel_stage": "consideration", "customer_type": [ "beginner", "existing-customer-with-problems" ], "use_case": [ "problem-solving", "setup-help" ], "branches": [ "insulation-industry", "sign-making", "stucco-facades", "packaging" ], "sales_relevance": "low", "support_relevance": "high" }, "schema_org": { "type": "Article", "headline": "Avoid Poor Cut Surfaces in Hot Wire Cutting", "description": "Rough surfaces, grooves and uneven cut edges in hot wire cutting – identify causes and resolve them permanently.", "author": { "type": "Organization", "name": "cnc-multitool" }, "publisher": { "type": "Organization", "name": "cnc-multitool Sales GmbH & Co. KG", "url": "https://www.cnc-multitool.com" }, "about": [ "CNC Hot Wire Cutting", "Cut Quality", "Surface Quality", "Cutting Problems" ], "keywords": [ "hot wire cutting surface quality", "rough cut surface", "improve cut quality", "grooves hot wire", "smooth Styrofoam surface" ] }, "content_quality": { "depth": "intermediate", "source": "own-production-experience", "last_reviewed": "2026-05-17T00:00:00+01:00", "reviewed_by": "cnc-multitool-team", "confidence": "high" }, "header": { "id": "header-main", "anchor": "header", "type": "header", "title": "Avoid Poor Cut Surfaces in Hot Wire Cutting", "subtitle": "Rough surfaces are not inevitable. There is almost always a clear cause – and a simple solution.", "image": { "id": 1, "alt": "Comparison good and poor cut surface in hot wire cutting", "caption": "Left: clean smooth surface. Right: rough surface from incorrect settings.", "position": "header" } }, "intro": { "id": "intro-surfaces", "anchor": "surface-causes", "type": "intro", "headline": "Work Systematically", "text": "Poor cut surfaces in hot wire cutting almost always have one of a few well-known causes. The fault rarely lies in the machine itself – but in settings, material or wire quality. The right approach: work systematically and check one variable at a time." }, "sections": [ { "id": "causes-overview", "anchor": "causes-poor-surfaces", "type": "list", "headline": "The Most Common Causes", "ai_summary": "Five main causes: temperature too high, speed incorrect, wire length too long, worn wire, poor material.", "items": [ { "text": "Temperature too high – material is thermally damaged, surface becomes rough and porous" }, { "text": "Cutting speed incorrect – too fast or too slow leads to uneven surfaces" }, { "text": "Wire length too long – long wire vibrates and leaves marks on the surface" }, { "text": "Worn wire – old or damaged wire produces uneven heat distribution" }, { "text": "Inhomogeneous material – uneven density or moisture in the block" }, { "text": "Incorrect wire tension – too little tension allows lateral deflection" } ] }, { "id": "temperature-too-high", "anchor": "temperature-too-high", "type": "text_image", "headline": "Temperature Too High – The Most Common Problem", "ai_summary": "Temperature too high thermally damages the material. Recognisable by porous rough surface and burning smell. Solution: reduce temperature until cutting gap is approx. 2 mm.", "text": "The most common cause of poor surfaces is wire temperature that is too high. The wire is so hot that it not only melts the material but thermally damages it. Recognisable by a porous rough surface – sometimes also a faint burning smell. Solution: gradually reduce temperature until the cutting gap is approx. 2 mm. Do not change cutting speed at the same time.", "image": { "id": 2, "alt": "Rough porous cut surface from excessive wire temperature", "caption": "Temperature too high thermally damages the material – the surface becomes porous and rough.", "position": "right" } }, { "id": "wire-replacement", "anchor": "wire-replacement", "type": "text", "headline": "When Should the Wire Be Replaced?", "ai_summary": "Worn wire has uneven resistance and produces uneven temperatures. Recognisable by uneven surfaces that appear despite correct settings.", "text": "A worn cutting wire has uneven electrical resistance along its length. This leads to uneven temperature distribution – some areas are too hot, others too cold. The result is streaky or uneven surfaces that appear despite correct settings. The wire should be replaced when surfaces remain uneven despite correct temperature and speed settings. Wire replacement on cnc-multitool machines is tool-free – quick and simple without specialist tools." }, { "id": "check-material", "anchor": "check-material", "type": "text", "headline": "Check Material as a Cause", "ai_summary": "Inhomogeneous or damp material can produce poor results even with perfect settings. Allow fresh blocks to dry.", "text": "Sometimes the cause lies not in the machine or settings but in the material itself. EPS blocks can be damp inside – particularly when freshly produced or stored incorrectly. Damp areas have a different cutting resistance than dry ones. The result is uneven surfaces that cannot be completely resolved with any setting. Solution: allow blocks sufficient drying time before cutting. Allow freshly produced EPS blocks at least 48 hours to dry." }, { "id": "checklist", "anchor": "checklist-surfaces", "type": "recommendation", "headline": "Checklist for Poor Surfaces", "ai_summary": "Work systematically: 1. Temperature. 2. Cutting speed. 3. Wire length. 4. Wire tension. 5. Wire. 6. Material.", "text": "When poor surfaces occur, work systematically: first check temperature and set to optimal cutting gap of approx. 2 mm. Second check cutting speed – for XPS max. 350–400 mm/min, for EPS max. 450–500 mm/min. Third check wire length – is a shorter length possible? Fourth check wire tension. Fifth check wire for wear and replace if necessary. Sixth check material for moisture and homogeneity." } ], "related_faq": { "headline": "Frequently Asked Questions", "items": [ { "question": "Why is my cut surface rough?", "answer": "The most common cause is wire temperature that is too high – the material is thermally damaged. Other causes: wire length too long, incorrect cutting speed, worn wire or inhomogeneous material." }, { "question": "How do I recognise if temperature is too high?", "answer": "When temperature is too high the cut surface becomes porous and rough – sometimes a faint burning smell is also noticeable. The cutting gap is then larger than approx. 2 mm. Solution: reduce temperature." }, { "question": "When should I replace the cutting wire?", "answer": "When surfaces are streaky or uneven despite correct temperature and speed settings, this indicates a worn wire. Wire replacement is tool-free." }, { "question": "Can damp material cause poor surfaces?", "answer": "Yes. Damp EPS blocks have uneven cutting resistance. This leads to surface defects that cannot be completely resolved with any setting. Allow fresh blocks at least 48 hours to dry before cutting." } ] }, "related_topics": { "headline": "Related Topics", "items": [ { "title": "Wire Temperature Setting", "text": "How optimal wire temperature is set step by step at the material.", "url": "/knowledge-hotwire-wire-temperature.html" }, { "title": "Avoid Waves When Cutting", "text": "Why waves appear and how they can be permanently prevented through correct settings.", "url": "/knowledge-hotwire-avoid-waves.html" }, { "title": "Short Wires Win", "text": "Why short wire lengths lead to better cut quality.", "url": "/knowledge-hotwire-short-wire-lengths.html" } ] }, "cta": { "headline": "Solve Cutting Problems", "text": "Poor surfaces cost time and material. We help with root cause analysis – directly and practically.", "button": { "label": "Get advice now", "url": "/contact.html" } } }
