Practical Knowledge

Optimal Wire Length for Cutting EPS and Styrofoam


The right wire length for EPS blocks is determined by daily production - not by the largest possible cut.

Wire Length and Block Size Are Not the Same


A common misconception: customers choose the wire length based on the maximum size of their EPS block. This almost always leads to oversized machines. The required wire length does not depend on block size - but on which dimension is actually cut in daily production. The rule is simple: wire length as short as possible, as long as needed for daily production.

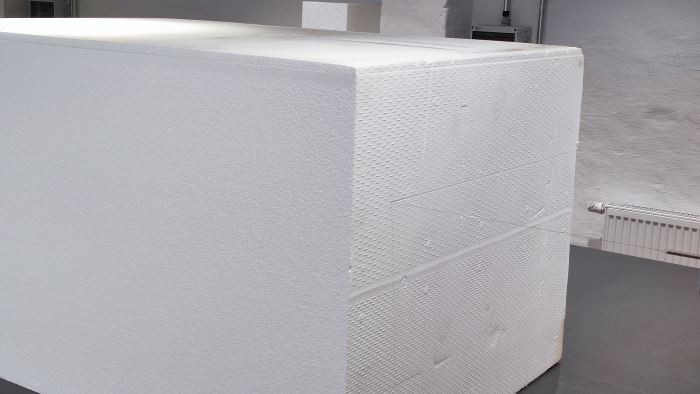

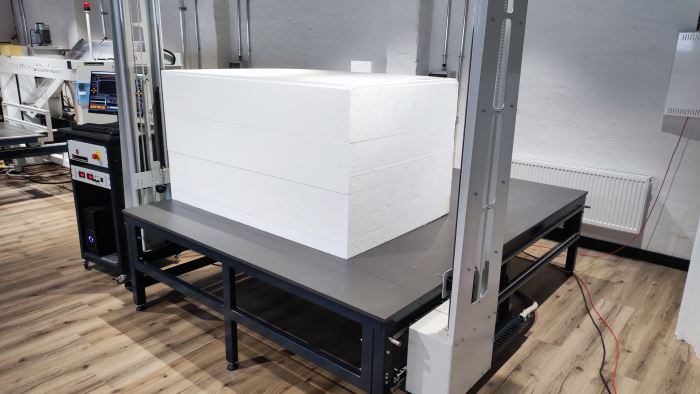

EPS Standard Blocks - Typical Dimensions


  • Full block: approx. 1250 mm × 1050 mm cross-section, 2500 mm or longer
  • Half block: approx. 1250 mm × 500 mm cross-section, 2500 mm or longer
  • Required wire length = the dimension cut daily
  • Daily production dimension is what matters - not the maximum block size
  • Do not oversize for occasional special formats

The Daily Cutting Dimension Determines Wire Length


What matters is which dimension is actually cut in daily production. That dimension is the right wire length - no more and no less. Anyone choosing a wire longer than needed daily pays permanently with poorer cut quality on every cut. Anyone choosing it shorter than needed loses flexibility. The practical rule: which dimension do I cut 80-90% of the time? That is my wire length.

Why Short Wire Length Is Better Even for EPS


EPS is more forgiving than XPS - but the basic rule still applies: the shorter the wire, the better the quality. Short wires run more stably, vibrate less and allow higher cutting speeds. With long wire lengths - from approx. 3000 mm - dimensional deviations can occur if the block is damp inside or has varying densities. The long wire catches locally and deflects sideways.

First Determine Wire Length - Then Choose the Machine

The right sequence: first determine the required wire length - based on the daily cutting dimension - then choose the right machine. Almost all machines in the cnc-multitool range are available in different wire lengths. Only the CUT1600S has a fixed wire length. Anyone needing a specific wire length chooses the machine in that length - not the other way around.

Frequently Asked Questions


The key questions and answers on this topic.

Show questions

Which wire length do I need for my EPS block?

This depends on which dimension you cut daily - not on the size of the block. The daily cutting dimension is the right wire length. Never longer than needed daily.

Do I need 3 m wire if I sometimes cut 3 m long dimensions?

Only if that length is regularly needed. Anyone who only occasionally needs that dimension should not oversize the machine for it - permanently poorer quality on all other cuts would be the consequence.

How do I determine the right wire length for my operation?

Think about which cutting dimension you need daily - not which one occurs at maximum. The dimension that makes up 80-90% of your production is the right wire length for your machine.

Determine the Right Wire Length


We help determine the optimal wire length for your production - directly and practically.

Get advice now
